Send a stream from Wowza Streaming Engine to Wowza Video Legacy for transcoding using Wowza APIs

With Wowza Streaming Engine™ media server software version 4.2 and later and the Wowza Video™ service, you can send single bitrate streams from Wowza Streaming Engine to Wowza Video Legacy for adaptive bitrate transcoding and delivery to viewers over the Wowza CDN edge network. This workflow allows you to use Wowza Video's high-performance servers and high-bandwidth networks for the heavy lifting of transcoding before delivering the stream to viewers.

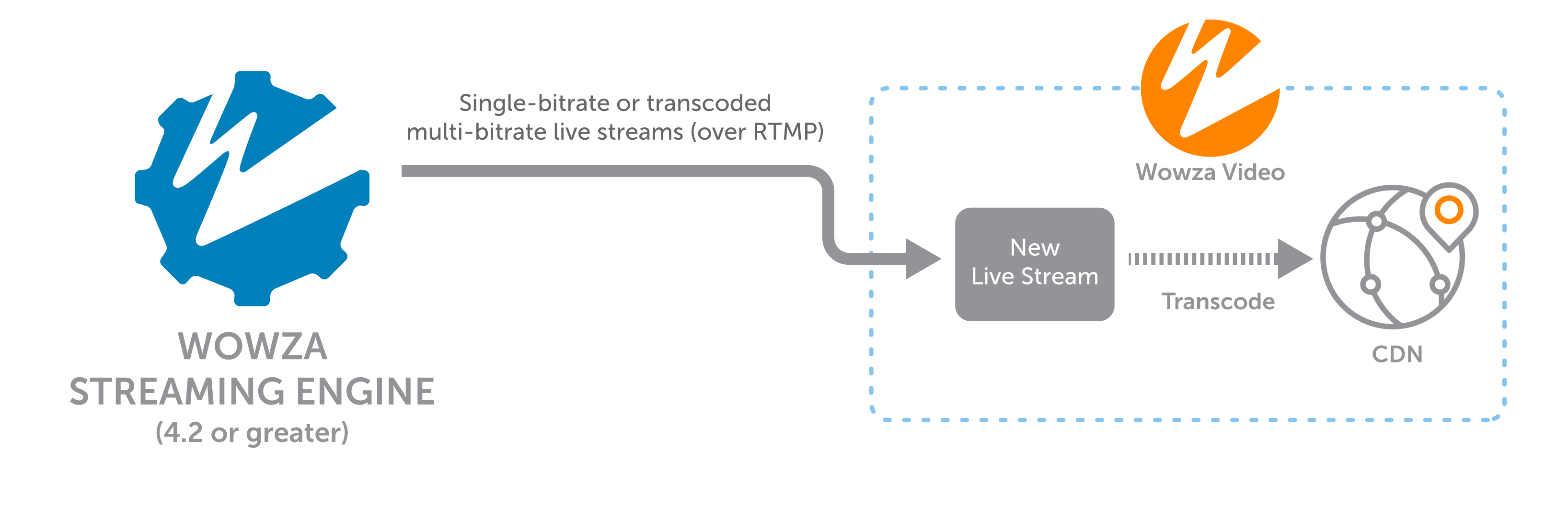

Wowza Streaming Engine transcoding workflow

In this article, you can learn how to use the Wowza Video REST API and the Wowza Streaming Engine REST API to set up a live application in Wowza Streaming Engine to send a stream to Wowza Video Legacy for transcoding.

info

The instructions in this article are meant for use with Wowza Streaming Engine versions 4.8.26 and earlier. With Wowza Streaming Engine 4.8.27, we're deprecating the workflow for stream targets that utilize connection codes. For the updated article that replaces the connection code workflow and leverages Wowza's APIs in Wowza Streaming Engine 4.8.27, see Send a stream from Wowza Streaming Engine for transcoding in Wowza Video using Wowza APIs .
Wowza Streaming Engine 4.7.4 has a known error that may break the stream target functionality for sending streams to Wowza Video Legacy for transcoding. We recommend updating to Wowza Streaming Engine 4.7.5 or later. For more information, see Wowza Streaming Engine 4.7.4 may experience problems sending streams to Wowza Video Legacy for transcoding .
For a UI-based version of this workflow, see Send a stream from Wowza Streaming Engine for transcoding in Wowza Video .

Before you start

You should be familiar with the following concepts:

API authentication methods . We use JSON web tokens for API authentication. See Authentication for more information.
Environment variables . We use environment variables for the API version and your JWT in the cURL API request examples in this topic to make it easier for you to copy, paste, and run commands in your Terminal or Command Prompt window. If you don't set environment variables for these values, you'll need to manually enter the correct values in the code samples throughout this tutorial. See Tools for testing the API for instructions.

1. Create a live stream in Wowza Video Legacy

Create a live stream using the Wowza Video REST API that will receive the stream from Wowza Streaming Engine, transcode it, and deliver it to viewers using the Wowza CDN. You can use the following sample request, making sure to:

Set encoder to wowza_streaming_engine .

Sample request

Endpoint Reference

Copy

Copied

curl -X POST \
-H "Content-Type: application/json" \
-H "Authorization: Bearer ${WV_JWT}" \
-d '{
  "live_stream": {
   "aspect_ratio_height": 720,
   "aspect_ratio_width": 1280,
   "billing_mode": "pay_as_you_go",
   "broadcast_location": "us_west_california",
   "encoder": "wowza_streaming_engine",
   "transcoder_type": "transcoded",
   "name": "Mylivestream"
 }
}' "${WV_HOST}/api/${WV_VERSION}/live_streams"

Sample response

The response includes a connection code to configure Wowza Streaming Engine to send the stream to Wowza Video Legacy.

Copy

Copied

{
    "live_stream": {
        "id": "abcrl8v5",
        "name": "Mylivestream",
        "transcoder_type": "transcoded",
        "billing_mode": "pay_as_you_go",
        "broadcast_location": "us_west_california",
        …
        "encoder": "wowza_streaming_engine",
        "delivery_method": "push",
        "delivery_type": "single-bitrate",
        "target_delivery_protocol": "hls-https",
        "use_stream_source": false,
        "aspect_ratio_width": 1280,
        "aspect_ratio_height": 720,
        "connection_code": "0oUm9G",
        "connection_code_expires_at": "2018-09-01T17:47:58.000Z",
        "delivery_protocols": [
            "rtmp",
            "rtsp",
            "wowz"
        ],
        "player": {
            "id": "sfjy5pvk",
            "type": "original_html5",
            "responsive": false,
            "width": 640,
            "countdown": false,
            "embed_code": "in_progress",
            "hls_playback_url": "https://[wowzasubdomain]/1/[ID]/hls/live/playlist.m3u8"
            }
        "hosted_page": {
            "enabled": true,
            "title": "Mylivestream",
            "url": "in_progress",
            "sharing_icons": true
            }
        "stream_targets": [
            {
                "id": "p63jrlqj"
            }
        ],
        "direct_playback_urls": {...},
        "created_at": "2018-08-31T17:47:58.000Z",
        "updated_at": "2018-08-31T17:47:59.000Z"
    }
}

2. Configure a live application in Wowza Streaming Engine

Next, use the Wowza Streaming Engine REST API to configure a live application to ingest a source stream (publisher). You can use the following sample request, making sure to:

Set publisherNamer to a descriptive name for the publisher.

Sample request

Copy

Copied

curl -X POST
-H "Accept:application/json" \
-H "charset=utf-8" \
-H "Content-Type:application/json" \
-d '{
  "publisherName": "myRTMPencoder"
}' \
"http://localhost:8087/v2/servers/{serverName}/vhosts/{vhostName}/applications/{appName}/publishers/myRTMPencoder"

Sample response

Copy

Copied

{
  "success": true,
  "message": "",
  "data": null
}

3. Enable push publishing in the Wowza Streaming Engine REST API

Before you can create or use stream targets with the Wowza Streaming Engine REST API, you must enable the push publishing module. To do so, you need to add an advanced property to the application's configuration and add the push publish module to the application.

Start by retrieving the details of the application's advanced settings and a list of the modules the application is using. Retrieve the information by sending a GET call to the endpoint /v2/servers/[serverName]/vhosts/[vhostName]/applications/[appName]/adv.

info

Wowza Streaming Engine REST API requests must include three headers: Accept:application/json, Content-Type:application/json, and charset=utf-8. For more information, see Query the Wowza Streaming Engine REST API.

Example request:

Copy

Copied

curl -X GET \
-H 'Accept:application/json; charset=utf-8' \
-H 'Content-Type:application/json; charset=utf-8' \
"http://localhost:8087/v2/servers/{serverName}/vhosts/{vhostName}/applications/{appName}/adv"

The request returns an object (advancedSettings) that shows the application's advanced settings and a modules list of the modules in use. The response looks something like this:

Copy

Copied

{
  "version": "1543353224014",
  "serverName": "serverName",
  "advancedSettings": [
    {
      "enabled": false,
      "canRemove": true,
      "name": "debugAACTimecodes",
      "value": "false",
      "defaultValue": "false",
      "type": "Boolean",
      "sectionName": "cupertinostreamingpacketizer",
      "section": "/Root/Application/LiveStreamPacketizer",
      "documented": true
    },
    {
      "enabled": false,
      "canRemove": true,
      "name": "debugMP3Timecodes",
      "value": "false",
      "defaultValue": "false",
      "type": "Boolean",
      "sectionName": "cupertinostreamingpacketizer",
      "section": "/Root/Application/LiveStreamPacketizer",
      "documented": true
    },
    ...
  ],
  "modules": [
    {
      "order": 0,
      "name": "base",
      "description": "Base",
      "class": "com.wowza.wms.module.ModuleCore"
    },
    {
      "order": 1,
      "name": "logging",
      "description": "Client Logging",
      "class": "com.wowza.wms.module.ModuleClientLogging"
    },
    {
      "order": 2,
      "name": "flvplayback",
      "description": "FLVPlayback",
      "class": "com.wowza.wms.module.ModuleFLVPlayback"
    },
    {
      "order": 3,
      "name": "ModuleCoreSecurity",
      "description": "Core Security Module for Applications",
      "class": "com.wowza.wms.security.ModuleCoreSecurity"
    },
  ]
}

Now, execute a PUT command to accomplish two tasks:

Add the pushPublishMapPath property to the application's configuration and
Append the ModulePushPublish to the complete list of modules in use.

info

The PUT command must include all of the existing modules in use by the application as well as the push publish module; use the response from the GET call to enumerate the modules that precede ModulePushPublish in the PUT call.

The command calls the same endpoint, /v2/servers/{serverName}/vhosts/{vhostName}/applications/{appName}/adv, and looks like this:

Copy

Copied

curl -X PUT \
-H 'Accept:application/json; charset=utf-8' \
-H 'Content-Type:application/json; charset=utf-8' \
"http://localhost:8087/v2/servers/{serverName}/vhosts/{vhostName}/applications/{appName}/adv"
{
  "version": "1543353224014",
  "serverName": "serverName",
  "advancedSettings": [
    {
      "enabled": true,
      "canRemove": false,
      "name": "pushPublishMapPath",
      "value": "${com.wowza.wms.context.VHostConfigHome}/conf/${com.wowza.wms.context.Application}/PushPublishMap.txt",
      "defaultValue": null,
      "type": "String",
      "sectionName": "Application",
      "section": "/Root/Application",
      "documented": false
    }
  ],
  "modules": [
    {
      "order": 0,
      "name": "base",
      "description": "Base",
      "class": "com.wowza.wms.module.ModuleCore"
    },
    {
      "order": 1,
      "name": "logging",
      "description": "Client Logging",
      "class": "com.wowza.wms.module.ModuleClientLogging"
    },
    {
      "order": 2,
      "name": "flvplayback",
      "description": "FLVPlayback",
      "class": "com.wowza.wms.module.ModuleFLVPlayback"
    },
    {
      "order": 3,
      "name": "ModuleCoreSecurity",
      "description": "Core Security Module for Applications",
      "class": "com.wowza.wms.security.ModuleCoreSecurity"
    },
    {
      "order": 4,
      "name": "ModulePushPublish",
      "description": "ModulePushPublish",
      "class": "com.wowza.wms.pushpublish.module.ModulePushPublish"
    }
  ]
}

Finally, restart the application, and then you can create and edit stream targets using the Wowza Streaming Engine REST API.

Copy

Copied

curl -X PUT \
-H 'Accept:application/json; charset=utf-8' \
"http://localhost:8087/v2/servers/{serverName}/vhosts/{vhostName}/applications/{appName}/actions/restart"

4. Create a stream target in Wowza Streaming Engine

Still in the Wowza Streaming Engine REST API, create a stream target for your application. You can use the following sample request, making sure to:

Set connectionCode to the connection_code from the Wowza Video Legacy live stream
Set enabled to true
Set profile to wowza-streaming-video
Set sourceStreamName to the name of the incoming stream for the application
Set wowzaVideoDestinationType to transcoder
Set wowzaVideo.adaptiveStreaming to false
Set the appName to match your application

Sample request

Copy

Copied

curl -X POST \
-H "Accept:application/json" \
-H "charset=utf-8" \
-H "Content-Type:application/json" \
-d '{
   "connectionCode": "0oUm9G ",
   "enabled": true,
   "entryName": "videoLiveStream",
   "profile": "wowza-streaming-video",
   "sourceStreamName": "myStream",
   "wowzaVideo.adaptiveStreaming": "false",
   "extraOptions": {
    "wowzaVideoDestinationType": "transcoder",
    "destinationName": "wowzastreamingvideo"
  }
}' \
"http://localhost:8087/v2/servers/{serverName}/vhosts/{vhostName}/applications/{appName}/pushpublish/mapentries/{entryName}"

Sample response

Copy

Copied

{
  "success": true,
  "message": "Entry (videoLiveStream) saved successfully",
  "data": null
}

5. Test the connection

With your application configured to ingest source stream and deliver it to Wowza Video Legacy, you're ready to test your workflow.

Configure your source encoder or camera. See Connect a live source to Wowza Streaming Engine for more information.

Start your live stream.

Endpoint Reference

Copy

Copied

curl -X PUT \
-H "Authorization: Bearer ${WV_JWT}" \
"${WV_HOST}/api/${WV_VERSION}/live_streams/{live_stream_ID}/start"

Check the state to make sure the live stream started.

Endpoint Reference

Copy

Copied

curl -X GET \
-H "Authorization: Bearer ${WV_JWT}" \
"${WV_HOST}/api/${WV_VERSION}/live_streams/{live_stream_ID}/state"

Start the stream in the H.264 camera or encoder that's sending the stream to your application in Wowza Streaming Engine.
Fetch a URL to a thumbnail that you can enter into a browser and visually confirm the stream is playing.
Endpoint Reference
Copy

Copied
```
curl -X GET \
-H "Authorization: Bearer ${WV_JWT}" \
"${WV_HOST}/api/${WV_VERSION}/livestreams/{live_stream_ID}/thumbnail_url"
```

Stop the live stream.

Endpoint Reference

Copy

Copied

curl -X PUT \
-H "Authorization: Bearer ${WV_JWT}" \
"${WSV_HOST}/api/${WV_VERSION}/live_streams/{live_stream_ID}/stop"

Stop the stream in the source camera or encoder.

Related API requests

GET /live_streams/[id] — View the details of a live stream.
DELETE /live_streams/[live_stream_id] — Delete a live stream.
GET /live_streams/[live_stream_id]/regenerate_connection_code — Regenerate a target's connection code.
